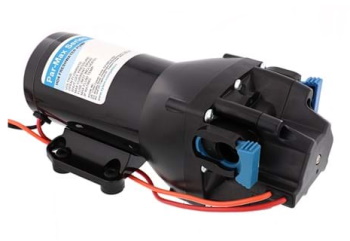

Heavy Duty 4 GPM Water System Pump - 12V - 60 PSI

Par-Max Heavy Duty 4 GPM Water System Pump - 12V

The Par-Max HD model includes a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Jabsco's updated and improved lineup of freshwater supply pumps are designed to provide years of satisfactory service in applications both large and small.

Features:

• 4 GPM

• Co-molded diaphragm technology for long life and durability

• HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures

• Efficient and quiet operation

• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility

• Runs Dry Without Damage

• Quick connect ports for ease of installation, servicing, and maintenance

• Vibration dampening mounting feet

• Equipped with integrated bypass module to reduce cycling and provide smoother flow


• Voltage - 12 VDC

• 12-Volt uses 25-amp fuse

• Open flow rate up to 4 gallons/minute (15.1 lpm)

• Pressure Switch Off Setting - 60 PSI (4.1 bar)

• Glass fiber reinforced polypropylene

• Diaphragm - Co-molded TPV

• Valves - EPDM

• Port Type - 2x 1/2" (13mm) Straight HB

• Dimensions - 9.4" length x 4.1" width x 3.8" height (240 x 104 x 97mm)
• Weight - 5.6 lbs.


MSRP

$258.52

U/M

/ EA

Price

$219.74

Core

Part Number

Q401J-118S-3A

Manufacturer

Website Jabsco

Brand

ETA

Quantity Available

0

Quantity On Order
