Headhunter X-Caliber Saltwater Pressure System Pump - 12-24 VDC

X-Caliber™ 12-24 VDC Saltwater Pressure System Pump

Model # XRS-124

Designed for the harsh marine environment, the X-Caliber™ offers quiet, reliable, blasting water pressure from VDC power. Combining a silent, brushless DC motor and control technology with a proven self-priming centrifugal pump, the X-Caliber™ surges past the competition with a flood of features. The pressure transducer has excellent chemical resistance and controls the speed with high linear accuracy. The efficient motor is further enhanced by an advanced water-cooling system. The X-Caliber™ scores in high performance and durability that invigorates showers and improves any water-pressure system capability.

A built-in microprocessor interfaced with a rugged ceramic temperature and pressure sensor provides variable speed operation, prevents dry-running damage and ensures complete electrical protection.


Features:

• Corrosion-proof, glass-reinforced polypropylene construction
• Operates on 12 or 24 volts DC

• Brushless water-cooled motor

• Whisper-quiet multistage impellers deliver pulsation-free water
  pressure

• High/Low voltage protection - Anti-flooding protection

• Integrated ceramic pressure transducer with adjustable cut-in pressure
• Dry-run protection

• Program power and pressure settings via integrated control panel
• 4-Color LED control panel displays current settings and alarm
  conditions

• Innovative mounting bracket rotates in 16 different positions


• Power - 12 VDC (300W to 500W) draws from 25A to 42A current

• Power - 24 VDC (300W to 500W) draws from 12.5A to 21A current
• Ambient temperature operation - 32° to 104° F (0-40° C)
• Liquid temperature operation - 32° to 122° F (0-50° C)
• Maximum pressure (shut-off) - 67 PSI (4.5 bar)

• Maximum flow - 10 gallons/minute (38 lpm)

• Suction/Discharge - 3/4" FTP

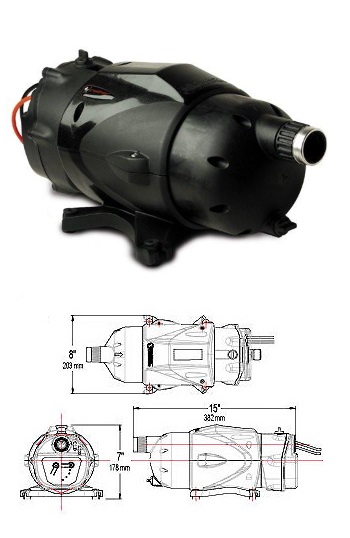

• Dimensions - 15" length x 85" width x 7" height (382 x 203 x 178mm)
• Weight - 16 lbs. (7.2 kg)


MSRP

$2,217.60

U/M

/ EA

Price

$2,217.60

Core

Part Number

XRS-124

Manufacturer

HEADHUNTER, INC.

Brand

ETA

Quantity Available

2

Quantity On Order
