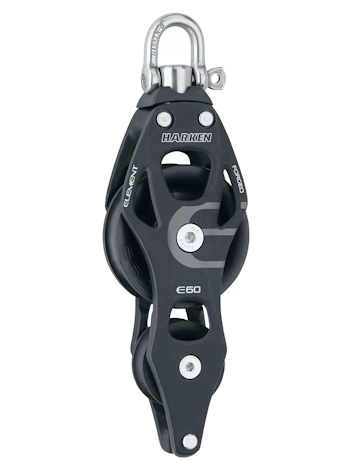

60mm Aluminum Element Fiddle Block - Swivel, Becket
Part No. 6263
Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element0s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.
Mfg No. 6263
Sheave Diameter 2-3/8" (60mm)
Length 7-1/8" (181mm)
Shackle Pin Dia. 1/4" (6mm)
Max Line Diameter 3/8" (10mm)
Max Working Load 2426 Lbs (1100kg)
Breaking Load 4850 Lbs (2200kg)
Weight 8.75 oz. (250g)
Sold individually
