Halyard Shackle - Stainless Steel - 5/16"

Halyard Shackle

Type 316 stainless steel body and pin

Halyard shackles have a lever action for easy opening and closing, with a keyed pin for positive locking.

• High strength-to-weight ratio


Mfg No. RF1034

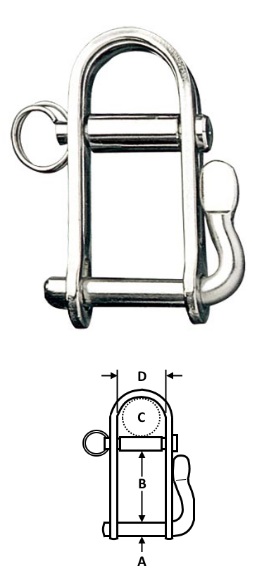

(A) Pin Dia. 5/16" (7.9mm)

(B) 1-17/32" (39mm)

(C) 23/32" (18.5mm)

(D) Inside Width 25/32" (20mm)

UDL (BL)¹ 5,950 Lbs (2,700kg)

PL (BL)² 4,850 Lbs (2,200kg)

Weight 3.2 oz. (90g)

1. UDL (BL) - The "Uniformly Distributed Load" breaking load of the shackle, where the load is applied across the full span of the shackle pin.

2. PL (BL) - The "Point Load" breaking load of the shackle, where the load is only applied at the center or one side of the shackle pin.

MSRP

$36.372

U/M

/ EA

Price

$36.372

Core

Part Number

RF1034

Manufacturer

RONSTAN INTERNATIONAL

Brand

ETA

Quantity Available

1

Quantity On Order
