Halyard Shackle - Stainless Steel - 3/16"

Halyard Shackle

Type 316 stainless steel body and pin

Halyard shackles have a lever action for easy opening and closing, with a keyed pin for positive locking.

• High strength-to-weight ratio


Mfg No. RF1032

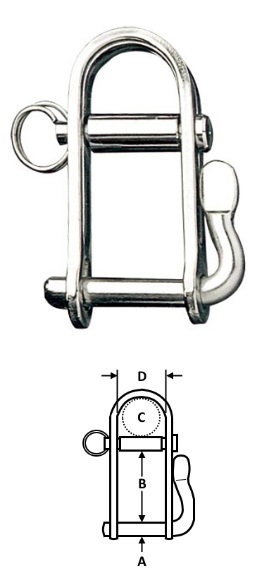

(A) Pin Dia. 3/16" (4.8mm)

(B) 7/8" (22mm)

(C) 13/32" (10mm)

(D) Inside Width 19/32" (15mm)

UDL (BL)¹ 2,650 Lbs (1,200kg)

PL (BL)² 1,980 Lbs (900kg)

Weight 1.1 oz. (30g)

1. UDL (BL) - The "Uniformly Distributed Load" breaking load of the shackle, where the load is applied across the full span of the shackle pin.

2. PL (BL) - The "Point Load" breaking load of the shackle, where the load is only applied at the center or one side of the shackle pin.

MSRP

$24.46

U/M

/ EA

Price

$24.46

Core

Part Number

RF1032

Manufacturer

RONSTAN INTERNATIONAL

Brand

ETA

Quantity Available

11

Quantity On Order
