Halyard Shackle - Stainless Steel - 1/4"

Halyard Shackle

Type 316 stainless steel body and pin

Halyard shackles have a lever action for easy opening and closing, with a keyed pin for positive locking.

• High strength-to-weight ratio


Mfg No. RF1033

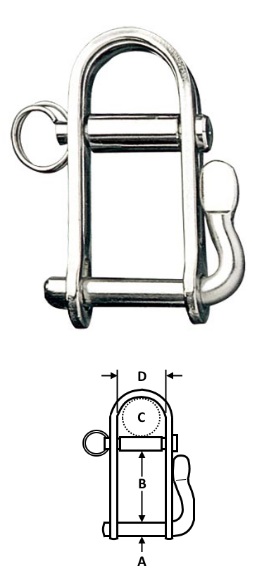

(A) Pin Dia. 1/4" (6.4mm)

(B) 1-1/4" (32mm)

(C) 1/2" (13mm)

(D) Inside Width 3/4" (19mm)

UDL (BL)¹ 4,630 Lbs (2,100kg)

PL (BL)² 3,310 Lbs (1,500kg)

Weight 1.9 oz. (55g)

1. UDL (BL) - The "Uniformly Distributed Load" breaking load of the shackle, where the load is applied across the full span of the shackle pin.

2. PL (BL) - The "Point Load" breaking load of the shackle, where the load is only applied at the center or one side of the shackle pin.

MSRP

$27.77

U/M

/ EA

Price

$27.77

Core

Part Number

RF1033

Manufacturer

RONSTAN INTERNATIONAL

Brand

ETA

Quantity Available

3

Quantity On Order
