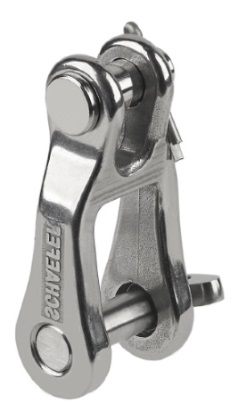

Halyard Shackle
Investment Cast Stainless Steel
Double-threaded shackle pin design allows removal of the headboard with only one unthreading, yet prevents the pin from being accidentally withdrawn. Unique pin-recess hold is cast into one of the jaws, allowing full headboard clearance when the pin is unthreaded. A second unthreading allows you to remove the pin entirely.
Mfg. No. 93-80
Halyard Type Wire
Max. Halyard Diameter 3/16" (5mm)
Pin Diameter Pin A: 7/16" (11mm) Pin B: 3/8" (10mm)
Length 1-3/16" (30mm)
Width 3/4" (19mm)
Safe Working Load 4,500 Lbs (2,045kg)
Weight 6 oz. (170g)
