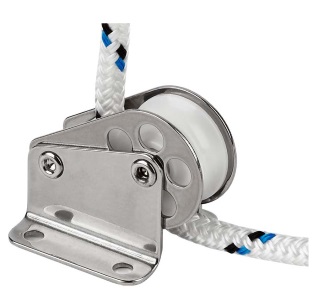

Halyard Lift Turning Block - 27mm
Stainless Steel Cheek
Lead halyards, topping lifts and other control lines aft with ease. Block is mounted to bisect halyard load angle for maximum tensile strength. Delrin® material provides a strong, smooth-running sheave.
Mfg No. 02-50
Sheave Dia. 1-1/16" (27mm)
Max Line Diameter 5/16" (8mm)
Dimensions (L x W x H) 1-9/32" x 1-13/32" x 1-11/16" (35 x 35 x 43mm)
SWL1 900 Lbs (410kg)
Fasteners 4 x #10 RH (5mm)
Ctr-Ctr Length 1" (25mm)
Ctr-Ctr Across 1" (25mm)
Weight 2.2 oz. (62g)
1. SWL (Safe Working Load)
