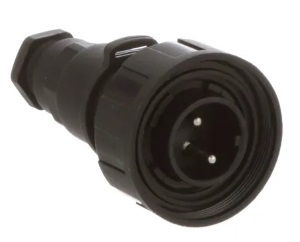

Flex Power Cable Connector - Pin Contact - 2 Pole

Buccaneer Standard Flex Power Cable Connector

The Buccaneer environmentally-sealed pin and socket power connectors are specifically designed for harsh applications where salt water, dust, oil or spray could present a hazard. These waterproof cable connectors have threaded collars with internal screw terminal wire connections, 2-pole version.


Features:

• Compact design

• Water and dustproof to IP68 when mated

• IP68 rating tested at 1.054kg/sq cm (15lb/sq in) 10m depth for 2 weeks and 9.84kg/sq cm (140lb/sq in) 100m depth for 12 hours

• Leading earth contact for 3-pole socket version

• Positive locating keyways - Cannot be misconnected

• Easy assembly - No special tools required on screw terminal versions
• Standard cable acceptance 6-8mm, 3.5-9mm range with alternative glands
• Color-coded identification variants

• Pre-wired, over-molded cable assemblies

• Power - 277 volts AC/DC, 12 amps

• UL Listed, CSA and VDE approved

• RoHS Compliant


In addition, the Flex Cable Connectors feature a 38mm diameter coupling ring (collar). The Flex Cable Connectors also mate with Buccaneer Panel Mount versions of these power connectors.

Sealing caps are also available to maintain IP68 rating of unmated connectors - See Mfg #PX0733 and Mfg #PX0734. These are sold separately and are highly recommended to maintain a tight seal in any exterior unmated connector use. These caps can also function as a tool to remove inserts from these connectors.

Mfg No. PX0736/P

Body Style Flex Female Collar

No. Poles 2

Termination Screw

Contact Type Pin

Accepts as Mate PX0734/S (Cap), PX0737/S (Plug), PX0764/S (Panel Mount)

Sold individually

MSRP

$28.60

U/M

/ EA

Price

$24.31
