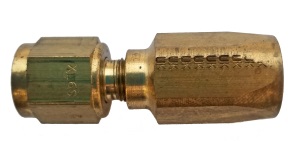

22 Series Hydraulic Hose Fitting - Brass
20622 Female JIC 37° Flare - Straight Pipe Connection
Field Attachable Hose Fitting - Hose To Female Pipe, JIC Swivel
The Parker "No-Skive" 22 Series Fitting is a field-attachable style (reusable) fitting which permits quick, easy field assembly without special tools. Assembly of No-Skive hose and fittings does not require removal of outer cover of hose. This eliminates premature hose failure caused by skiving too long or short.
Today, flared fittings are the most widely used fittings in the world. The majority of flared fittings sold in the marketplace are 37° (JIC) and 45° (SAE). The flared design uses the interface of two angular surfaces to create a metal-to-metal seal. These 20622 fittings contain a dual seat that accepts both JIC (37°) and SAE (45°) male configurations, with the exception of the -6 and -12 SAE swivel fittings that are not available in JIC. The -6 SAE 45° swivel fitting, however, is available as SAE only - see Mfg# 20822.
