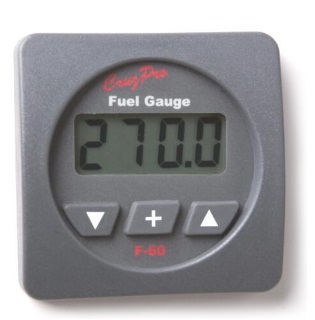

F60 Digital Fuel Gauge - Square

F60 Digital Fuel Gauge

4-Digit LCD Display

This fuel gauge provides a digital display of fuel level in several modes and can be programmed for fuel transfer pump control using the output screw terminal. Fuel level can be displayed in Liters or Gallons or as a percentage (0-100%).

The F60 has been pre-programmed to work with all known resistance-type level senders with 0-30, 0-70, 0-90, 10-73, 10-180, 33-240, 40-250 ohm output (and their reverse) used by VDO, Teleflex, Mercury, GM, Stewart Warner, Centroid, Aero-Tec and others.

The F60 will actually also work with any non-standard resistance sender that varies from a minimum of 0-Ohms to a maximum of 300-Ohms or a maximum of 300-Ohms to a minimum of 0-Ohms. For example, a resistive sender that varies in resistance from 100 to 150 ohms would work. So would a sender that varies from 75 ohms to 25 ohms.

Specifications:

• Operating voltage from 9.5 - 33.0 VDC

• Current drain: 0.018 amps nominal

• Operating temperature from 32? to 122? F (0? - 50? C)

• Five levels of backlighting, with external backlight on/off control
• Built-in 85dB audible alarm with independent settable low and high level alarms

• Data output as NMEA 0183 serial 4800 BAUD ($IIXDR sentence)

• NMEA 0183 data output terminal may be programmed as an external alarm output or day tank fuel transfer pump control

• Programmable lower fuel level limit to turn ON a fuel transfer pump
• Programmable upper fuel level limit to turn OFF the fuel transfer pump

• Case size: 2.5" width x 4.1" depth (61 x 104mm)

• Mounting hole: 2-1/8" (55mm) diameter

• CE certified

MSRP

U/M

/ EA

Price

$142.99

Core

Part Number

F60SQ

Manufacturer

CRUZ PRO LTD.

Brand

ETA

Quantity Available

4

Quantity On Order
