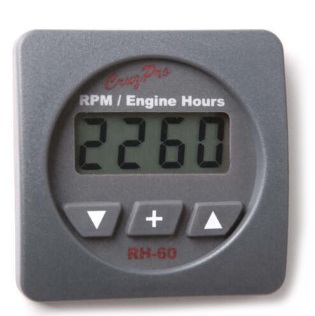

EH60 Digital Engine Hours/Elapsed Time Gauge - Square

Digital Engine Hour Meter/Tachometers

Model RH60

The RH60 Digital RPM/Engine Hours/Elapsed Time digital gauge provides a four-digit display of engine RPM, total engine hours, elapsed trip time and maximum RPM seen. The RH60 works with any engine and can be driven from a wide range of signal frequencies and amplitudes.

Front panel calibration is provided for spot-on accuracy to within 1 RPM. A separate engine hours countdown alarm can be set to warn you to perform needed maintenance every set number of hours of engine running time. When activated, the RH60 built-in 85dB alarm will sound and the display will flash.

Five levels of backlighting can be selected, and all set-up, calibration and alarm values are saved to nonvolatile memory. Data is output on an NMEA 0183-compatible serial data line or that screw terminal can be programmed as an external alarm output.

Specifications:

• Operating voltage: 9.5 to 33.0 VDC

• Nominal current: 0.018 amps

• Display - 4 digit LCD, 5 levels of backlighting & 13 levels of display damping

• Data RPM - 0 to 9999

• Data Engine Hours: 0.0 to 9999

• Data Elapsed Time: 00:00 mins/sec to 99:59 hrs/mins

• Inputs - Low, Medium and High sensitivity inputs works from any RPM sender signal

• Data Ouput - NMEA 0183 serial 4800 BAUD or use as external alarm output
• Alarms - Built-in 85dB audible Max RPM alarm and settable maintenance hours alarm

• Case size: 2.5" width x 4.1" depth (61 x 104mm)

• Mounting hole: 2-1/8" (55mm) diameter

• CE certified

MSRP

$272.434

U/M

/ EA

Price

$272.43

Core

Part Number

RH60SQ

Manufacturer

CRUZ PRO LTD.

Brand

ETA

Quantity Available

2

Quantity On Order
