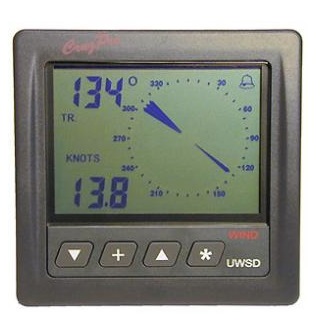

CruzPro WSD110 Digital Wind Speed/Direction Display

CruzPro WSD110 Digital Wind Speed/Direction Display

With NMEA 0183 Output and Built-in Data Logging for up to 40 Days

Displays Apparent Wind Speed/Direction, True Wind Speed/Direction, Velocity Made Good (VMG), Maximum Wind Speed, and Average Wind Speed/Direction. Knots, M/S, MP/H and Km/H. High wind-speed alarm, five levels of backlighting with external ON/OFF control. Built-in data logger with user settable logging interval from 2.5 seconds per sample to 10 minutes per sample. Log Apparent Wind Speed & Direction, True Wind Speed & Direction, Boat Speed and VMG to non-volatile memory for up to 40 days. Output data to PC in Microsoft Excel compatible comma delimited (CSV) format. 12/24V operation.


Specifications:

• Operating Voltage - 9.5 - 33.0 VDC

• Current Drain - 0.025 - .045 amps nominal (depends on backlight level)
• Display - STN 128 segment LCD (red LED backlighting), Alarm bell, 5 levels of backlighting including OFF,
• External backlight ON/OFF control
• Alarms - User Settable High Wind-Speed Alarms

• Memory - Non-volatile for settings, Maximum wind-speed memory, Large data logging memory (up to 40 days)

• Resolution - Speed: 0.1 knot, Direction: 1°, Air Temperature: 1° F or C

• Range - Speed: 0.0 - 99.9 knots, MP/H, M/S, Km/H, Direction: 0-359° (or +/- 90° expanded scale), Air
• Temperature: 32-99° F (0-37° C)

• Sensor - 4 Ultrasonic sensor. 3D measurement not affected by heel angle
• Data Output - NMEA 0183 Wind Speed/Direction and Air Temperature
• Size - 4.3" x 4.3" (110m x 110mm)

• Mounting - 2-1/8" (55mm) round hole

• Waterproof front case

• CE Certified and RoHS compliant


MSRP

U/M

/ EA

Price

$326.91

Core

Part Number

WSD110

Manufacturer

CRUZ PRO LTD.

Brand

ETA

Quantity Available

2

Quantity On Order
