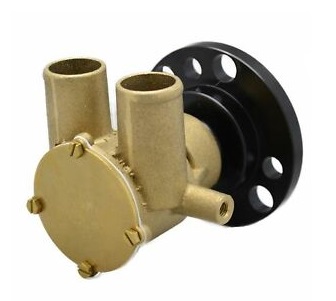

Johnson Crank-Driven Engine Cooling Pump - Model F6B-9

Heavy-Duty Bronze Flexible Impeller Pump

OEM Crank-Driven Engine-Cooling Pump

Johnson Pump is a leading provider of cooling pumps to OEMs worldwide. Their pumps feature bronze housings, flexible impellers and different port sizes providing suitable discharge capacity to satisfy a variety of cooling
needs.

These compact, raw water-resistant, bronze pumps have excellent self-priming capability and are ideal as cooling water pumps for marine engines. The FB-9 model series are specially tailor-made to engine manufacturers' specifications in regard to design and performance.


Specifications:

• Bronze pump body with crank-shaft pulley mount

• Stainless steel shaft with lip seal

• Shaft mounted with two permanently lubricated ball bearings
• Neoprene impeller

• Includes full cam and wear plate

• 1-1/4" inlet and outlet hose ports

• Capacity up to 9900 gallons/hour (625 liters/minute)

• CE approved

• ISO9001 certified

• Weight - 12.1 lbs.


Replaces Johnson Pump 10-24805-01

Mfg No. 10-24946-01

Model F6B-9

OEM Motor Use Big-Block Engines

Impeller Model 09-812B

Service Kit Model 09-45825

F6B-9 Impeller Pump is a replacement pump for Chevy big-block engines. Use also on Alaska Diesel L6414A, Northern Lights 25-11030, and Indmar big-block engines.

MSRP

$325.93

U/M

/ EA

Price

$277.04

Core

Part Number

10-24946-01

Manufacturer

SPX FLOW US, LLC

Brand

ETA

Quantity Available

3

Quantity On Order
