Clevis Pins
Grade 316 stainless steel

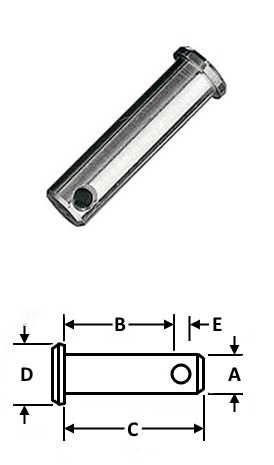

Dimension B: Working Length - The distance from the shoulder to the inside edge of the hole at the opposite end of the pin.
Mfg No. RF269
(A)Pin Dia. 5/16" (7.9mm)
(B)Working Length 1" (25mm)
(C)Overall Length 1-3/16" (30mm)
(D)Head Dia. 3/8" (9.5mm)
(E)Hole Dia. 3/32" (2.7mm)
Weight 0.4 oz. (10g)
Sold individually
