Clevis Pins
Grade 316 stainless steel

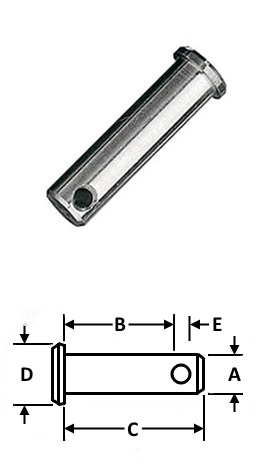

Dimension B: Working Length - The distance from the shoulder to the inside edge of the hole at the opposite end of the pin.
Mfg No. RF273
(A)Pin Dia. 3/8" (9.5mm)
(B)Working Length 1-1/4" (32mm)
(C)Overall Length 1-7/16" (37mm)
(D)Head Dia. 1/2" (12.7mm)
(E)Hole Dia. 5/32" (3.7mm)
Weight 0.7 oz. (20g)
Sold individually
