Clevis Pins
Grade 316 stainless steel

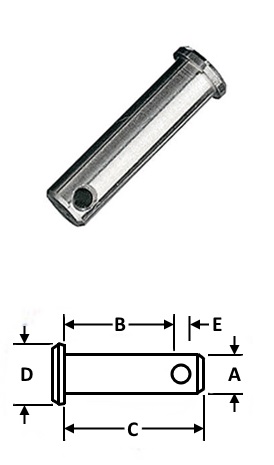

Dimension B: Working Length - The distance from the shoulder to the inside edge of the hole at the opposite end of the pin.
Mfg No. RF262
(A)Pin Dia. 3/16" (4.8mm)
(B)Working Length 1" (25mm)
(C)Overall Length 1-1/8" (28mm)
(D)Head Dia. 1/4" (6.4mm)
(E)Hole Dia. 3/32" (2.2mm)
Weight 0.2 oz. (5g)
Sold individually
