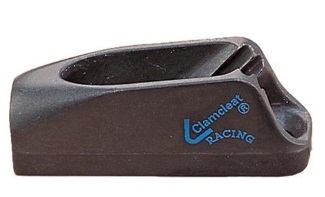

Clamcleats® for Rope 1/8" - 1/4" (3-6mm)
Aluminum
Each of these Clamcleats® has an integral fairlead that guides the rope into the cleat. They have also been designed with a groove in the base, enabling them to be fitted to both flat and curved surfaces.
The Clamcleat® Principle
A deceptively simple, ridged "V" groove holds ropes firmly, yet it's devoid of any moving parts to break or seize. It allows the immediate release of the rope by a short upward and backward pull. Always tension the rope before it enters the cleat. Dragging the rope backwards over the teeth may cause damage, especially to the nylon cleats.
Aluminum cleats are highly successful in providing a complete answer to rope burn. They are unaffected by the heat generated by a rope surging back through a cleat, and they are suitable for sub-zero temperatures. Corrosion resistance is good. Clamcleat's® research into cleat materials over the years has shown aluminum to be far better for high-performance cleats than any polymer, irrespective of any fibre reinforcement or additive. These factors make aluminum cleats the best choice for demanding applications. Selected cleats are also available in a Hard Anodized Finish, which gives a high-tech and fashionable appearance, as well as offering superior resistance to sea water corrosion.
Fitting
These cleats are provided with countersunk fixing holes. Countersunk head screws or bolts of the recommended size should be used, bolts being preferred. Fastenings must be entered straight so that the heads do not protrude to snag the rope.
Note: Clamcleat® rope cleats are unsuitable for use with metal ropes.
Mfg No. CL211Mk2AN
Description Racing Junior Mk2
Rope Diameter 1/8" - 1/4" (3-6mm)
Material Aluminum (Hard Anodized)
Dimensions* 2-1/8" x 1-1/16" x 5/8" (55 x 27 x 17mm)
Bolt Size #8 (M4)
Screw Size #8 (4.2mm)
Weight 0.8 oz. (23g)
