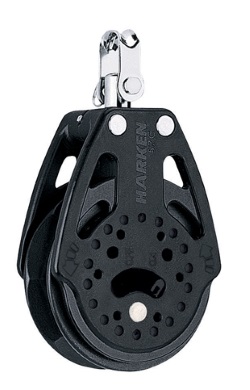

Carbo Ratchet Block - 75mm - Single

Carbo Ratchet Block - 75mm - Single

SKU: 102197

$102.95 / EA


Carbo Ratchet Block - 75mm

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.

Nylon-resin side plates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Machined aluminum sheaves are Hard Lube-anodized for strength and corrosion resistance. Eight facets hold line securely. Ball bearings, sheave and sideplates are UV-stabilized with carbon black for maximum protection.

For the ultimate system, mount a switchable ratchet in the cockpit and a boom-mounted Ratchamatic® directly above to allow double holding power in heavy air and to ensure a free-running mainsheet in light air. The holding power of the 75mm is up to 15:1. (Holding Power with 180° wrap at 50 Lbs.)


Use for:


  • Main / jib / spinnaker sheets
  • Mainsheet fine-tune
  • Traveler controls
  • Genoa leads
  • Foreguys
  • Vangs

Mfg No. 2670

Sheave Diameter 2-15/16" (75mm)

Length 5-3/8" (137mm)

Shackle Pin Dia. 1/4" (6mm)

Max Line Diameter 7/16" (12mm)

MWL1 750 Lbs (341kg)

Breaking Load 3,000 Lbs (1,361kg)

Weight2 8.0 oz (227g)

1. MWL - Maximum Working Load
2. Weight including Shackle

MSRP
$102.95
U/M
/ EA
Price
$102.95
Part Number
2670
Manufacturer
HARKEN INC.
Quantity Available
1
Quantity On Order
Prop65Both2HarkenLogo
