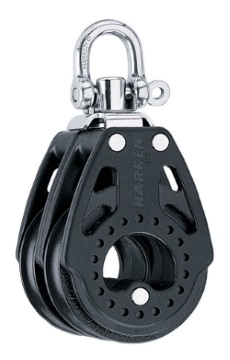

Carbo AirBlock - 57mm - Double / Swivel

Carbo AirBlock - 57mm - Double / Swivel

SKU: 102205

$116.95 / EA


Carbo AirBlock® - 57mm

Low-friction Carbo AirBlocks® are lightweight, strong, reliable, and affordable.

Carbo AirBlocks® are 60% stronger and 30% lighter than Harken's Classic blocks. The Nylon-resin side plates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Ball bearings, sheave and side plates are UV-stabilized with carbon-black additive for maximum protection.

Blocks feature Cam-Lock or U-Lock locking systems to lock the shackle in front or side positions, or swivel to keep line from twisting. The high-load 57mm Carbo has a broad working range. Use for main and jib sheets on centerboard and keelboats like Lightnings, Dragons, Solings, J/24's, and for mainsheet systems on catamarans.

Like all AirBlocks®, the three-way head swivels/locks in front/side positions. Blocks are easily disassembled with a single Allen® wrench.


Use for:


  • Main/jib sheets
  • Mainsheet fine-tune
  • Control lines
  • Vangs
  • Cunninghams
  • Outhauls

Specifications:

  • Sheave Diameter - 57mm (2-1/4")
  • Max Line Diameter - 7/16" (10mm)

Mfg No. 2602

Description Double / swivel

Length 4-3/4" (121mm)

Shackle Pin Diameter 1/4" (6mm)

Max Working Load 1,584 Lbs (720kg)

Breaking Load 3,300 Lbs (1,500kg)

Weight w/ Shackle 6.3 oz. (178g)

MSRP
$116.95
U/M
/ EA
Price
$116.95
Part Number
2602
Manufacturer
HARKEN INC.
Quantity Available
4
Quantity On Order
