Bow Shackle - Stainless Steel - 5/16"

Bow Shackle

Type 316 Stainless Steel Body and Pin

• High strength-to-weight ratio


Mfg No. RF636

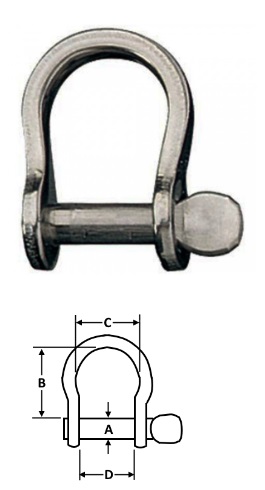

(A) Pin Diameter 5/16" (7.9mm)

(B) Inside Length 1-1/16" (27mm)

(C) Inside Width 7/8" (22mm)

(D) Throat Width 5/8" (16mm)

UDL (BL)* 7,940 Lbs (3,600kg)

PL (BL)** 5,950 Lbs (2,700kg)

Weight 1.6 oz. (45g)

* UDL (BL) - The "Uniformly Distributed Load" breaking load of the shackle, where the load is applied across the full span of the shackle pin.

** PL (BL) - The "Point Load" breaking load of the shackle, where the load is only applied at the center or one side of the shackle pin.

MSRP

$16.96

U/M

/ EA

Price

$16.96

Core

Part Number

RF636

Manufacturer

RONSTAN INTERNATIONAL

Brand

ETA

Quantity Available

2

Quantity On Order
