Bow Eye
Machined AISI 304 Stainless Steel
Sea-Dog Bow Eyes come with adjustable finished nuts, compared to the crimped ring used on most other bow eyes. Shafts on all three sizes have rolled threads.
Plate Size - 2-1/4" x 3/4"
Mfg No. 080035
Thread 3/8" NC*
Breaking Strength 16,000 Lbs
Weight .36 Lbs

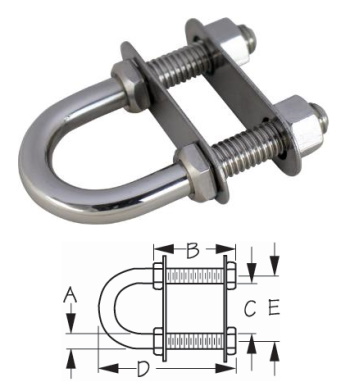

Measurements:
A 3/8"
B 3-1/2"
C 1-1/16"
D 4-15/16"
E 1-7/16"
* National Coarse Thread
