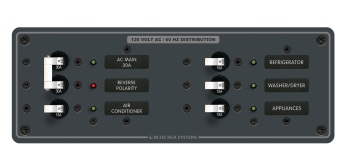

Blue Sea Systems 8099 Breaker Panel - AC Main + 4 Positions

Blue Sea Systems 8099 Breaker Panel - AC Main + 4 Positions

SKU: 79686

$339.46 / EA


Horizontal 4-Position VAC Circuit Breaker Panel with AC Main Switch

Slate Grey Finish

This 50-Amp panel is industry standard height and width and fully pre-wired with all positive, negative, and grounding buses installed. All circuit label positions are backlit on standard panels - No kit is required.


Features:


  • AC Main switch
  • "ON" indicating LEDs installed in all circuit positions
  • Red reverse polarity indicating LED
  • Countersunk mounting holes throughout
  • Heavy 1/8" aluminum 5052 alloy construction
  • Two-part polyurethane finish - Slate Grey
  • MIL-C-5541C immersion undercoating or equivalent for lifetime corrosion resistance
  • Completely wired and ready to install
  • Detailed installation instructions and cut-out template included

Specifications:

  • Voltage - 120 VAC

  • (1) installed double-pole 30-amp circuit breaker
  • (4) installed single-pole circuit breakers - 15 amps each
  • Panel cumulative rating - 50 amps

Dimensions:

  • Width - 10.50" (266.70mm)
  • Height - 3.75" (95.25mm)
  • Weight - 2.25 Lbs. (1.02 kg)

MSRP
$399.36
U/M
/ EA
Price
$339.46
Part Number
8099
Manufacturer
BLUE SEA SYSTEMS
Quantity Available
1
Quantity On Order
