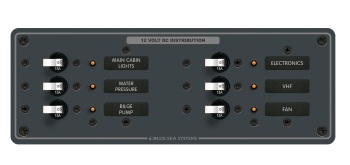

Blue Sea Systems 8096 Breaker Panel - DC Branch - 6 Positions

Horizontal 6-Position VDC Circuit Breaker Panel

Slate Grey Finish

This 100-Amp panel is industry standard height and width and fully pre-wired with all positive, negative, and grounding buses installed. All circuit label positions are backlit on standard panels - No kit is required.


Features:

• "ON" indicating LEDs installed in all circuit positions

• Countersunk mounting holes throughout

• Heavy 1/8" aluminum 5052 alloy construction

• Two-part polyurethane finish - Slate Grey

• MIL-C-5541C immersion undercoating or equivalent for lifetime corrosion resistance

• Completely wired and ready to install

• Detailed installation instructions and cut-out template included
• Includes set of 30 common DC labels


• Voltage - 12 or 24 VDC

• 6 installed single-pole circuit breakers - 15 amps each

• Circuit breaker rating - 15 amps

• Panel cumulative rating - 100 amps


• Width - 10.50" (266.70mm)

• Height - 3.75" (95.25mm)

• Weight - 2.25 Lbs. (1.02 kg)


MSRP

$396.29

U/M

/ EA

Price

$336.85

Core

Part Number

8096

Manufacturer

BLUE SEA SYSTEMS

Brand

ETA

Quantity Available

0

Quantity On Order
