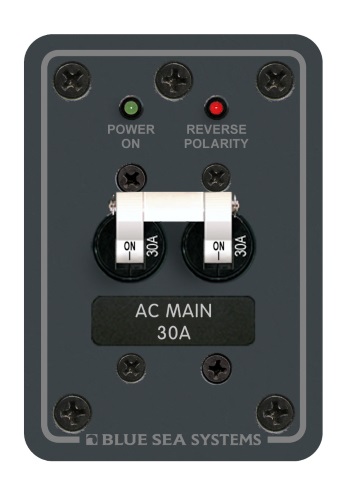

Blue Sea Systems 8077 Breaker Panel - AC Main Only

AC Main Breaker Panel - 30 Amps

No. 8077 - AC Main Only

Combine switching and circuit protection into a single device using an A-Series Toggle-Type magnetic hydraulic circuit breaker.


Features:

• LED indicator lighting for "Power On" (green) and "Reverse Polarity" (red)

• Safety ground screw on panel back

• "Trip Free" design cannot be held "ON" during fault current condition
• Heavy 1/8" aluminum 5052 alloy construction

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate grey finish

• Industry standard height and width

• Countersunk mounting holes throughout

• Includes detailed installation instructions and cutout template


• Main switch only - White toggle

• Power rating - 65V - 277 Volts AC

• Panel height - 3.75" (95.25mm)

• Panel width - 2.63" (66.80mm)

• Panel weight - 0.51 Lbs. (0.23 kg)

• Installed with (1) 30-Amp double-pole circuit breaker (Main)


MSRP

$152.60

U/M

/ EA

Price

$129.71

Core

Part Number

8077

Manufacturer

BLUE SEA SYSTEMS

Brand

ETA

Quantity Available

1

Quantity On Order
