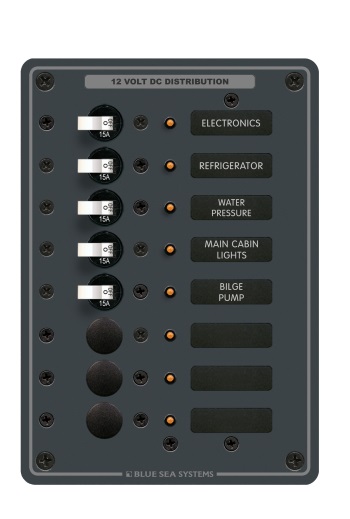

Blue Sea Systems 8023 Breaker Panel - DC Branch - 8 Positions

8-Position DC Breaker Panel

No. 8023 - A-Series Toggle Branch DC Circuit Breakers


Features:

• All positive, negative, and grounding buses installed and fully pre-wired

• Label backlighting pre-installed

• "ON" indicating LEDs installed in all circuit positions

• Heavy 1/8" aluminum 5052 alloy construction

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate grey finish

• Industry standard height and width

• Countersunk mounting holes throughout

• Includes detailed installation instructions and cutout template
• Includes set of 30 common DC labels

• Configure for 12 or 24 Volts DC distribution with supplied labels


• Power - 12-volt or 24-volt DC/ 100 amp

• Panel height - 7.50" (190.50mm)

• Panel width - 5.25" (133.35mm)

• Panel weight - 1.95 Lbs. (0.89 kg)

• Toggle color - White

• Installed with (5) 15-Amp single pole circuit breakers


MSRP

$335.62

U/M

/ EA

Price

$285.28

Core

Part Number

8023

Manufacturer

BLUE SEA SYSTEMS

Brand

ETA

Quantity Available

2

Quantity On Order
