Blue Sea Systems - ML-Series Remote Battery Switch

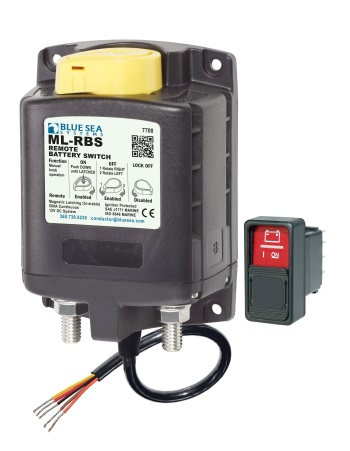

ML-RBS Heavy-Duty Remote Battery Switch

This battery switch with remote-control Contura switch has a bi-stable magnetic latch that allows high-amp switching under load manually or from remote locations.


Features:

• 500-amp continuous rating for engine, inverter, house loads, and emergency battery combined

• Magnetic latching that draws no current in "ON" or "OFF" state, only draws current when changing state of switch

• Manual control switch to provide an added level of safety allowing control with or without power, and offering

• "Locked Off" capability for servicing

• Silver alloy contacts to provide high reliability for switching live loads

• Stripped wire cable ends

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

• 7/8" (22mm) stud length accepts multiple cable terminals

• Label recesses for circuit identification

• Includes ML-Series Remote Control Contura Switch - Mfg# 2145


• Coil voltage - 12 volts DC

• Cranking rating - 10 seconds/2,500 amps*

• Cranking rating - 1 minute/1,100 amps*

• Intermittent rating - 5 minutes/700 amps*

• Continuous rating - 500 amps*

• Rated switch cycles - 100,000

• Operating current - continuous 0mA

• Operating current when changing state < 7.0 amps

• Terminal stud size - 3/8"-16 (M10)

• Terminal stud length - 7/8" (22mm)

• Terminal stud torque - 140 in-lb (15.5 Nm)

• Terminal ring diameter clearance - 1.12" (28.4mm)

• #10 Mounting fasteners - not included

• Control circuit connection - Tinned wire

• Live current switching at 300A @ 12V DC - 10,000 Cycles

• CE approved

• Meets ISO 8846 MARINE and SAE J1171 MARINE external ignition protection requirements

• Waterproof - Rated IP66-protected against powerful water jets


MSRP

$287.67

U/M

/ EA

Price

$244.52

Core

Part Number

7700

Manufacturer

BLUE SEA SYSTEMS

Brand

ETA

Quantity Available

2

Quantity On Order
