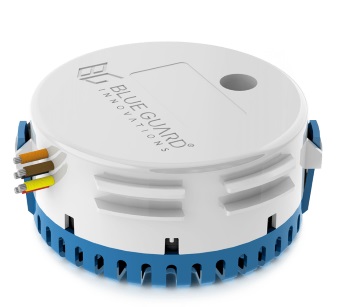

Blue Guard Innovations Bilge Pump Switch w/Oil & Fuel Detector - BG-ONE

$186.15

$219.00

Sku: 77006


BG-One Oil and Fuel Detector with
Smart Bilge Pump Switch

The BG-One integrates with the bilge pump system to selectively pump out water and not oil or fuel, preventing the vessel from accumulating water and aiding in the prevention of costly oil or fuel spills. The BG-One was developed in collaboration with the marine industry needing a reliable, long lasting bilge pump switch. Having no moving parts or float switches that can easily be damaged, the BG-One will automatically turn off the bilge pump when oil or fuel is detected before a costly spill occurs. The BG-One will connect to any 12 or 24 Vdc bilge pump and alarm panel on the market today. The BG-One is CE and ISO 8846 Marine Ignition Protection Certified, tested to ABYC-1500 standards. Patented technology.


Features:


  • Oil and Fuel Detection down to 1 mm (0.04 in)
  • Two integrated sensors - solid state with no moving parts or mechanical float switches that can easily be damaged
  • Built-in smart bilge pump switch for up to 20 amp bilge pumps
  • Rugged, non-corrosive ABS plastic housing and mounting bracket
  • Connects to the BGI Config App via Bluetooth, available on iOS and Android devices
  • CE & ISO 8846 Marine Ignition Protection Certified (Tested to ABYC-1500 Standards)

Smart Switch Modes of Operation: (Configurable through the BGI Config App)


Mode A (Marina)

  • Turns pump ON when water is detected
  • Turns pump OFF when oil or fuel is detected
  • Turns pump back ON when only water is detected

Mode B (Marine Sanctuary)

  • Turns pump ON when water is detected
  • Turns pump OFF when oil or fuel is detected
  • Stays OFF until alarm and bilge is cleared (Requires power cycling of device)

Standard Mode (High Seas)

  • Bilge pump switch only (Will turn ON or OFF for any liquid)

Specifications:

  • Alarm Output 12V or 24V dc 1 amp
  • Max Current 20 amps
  • Operating Voltage 12V or 24V dc
  • Heavy-duty five wire system with 6 ft long 14 gauge marine grade wires.
  • IP-68 Rated Durability

Operating Temperature Range:

  • Operational with Full Functionality 32° F - 158° F / 0° C - 70° C
  • Operational -22° F - 185° F / -30° C - 85° C

Measurements without mounting bracket (Dia. X Height) 4.6" x 2.0"

Measurements with mounting bracket (Length x Width x Height) 5.9" x 4.6" x 2.0"
