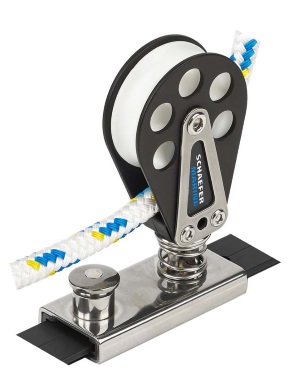

Schaefer #504-82 Spring-Loaded Block/Lined Slide/Alum Cheek - 1" Track

Spring-Loaded Genoa Block on Slide with Liner

Stainless Steel with Hardcoat Anodized Aluminum Cheeks

Spring-loaded blocks offer a wide flexibility in sheeting angles, allowing up to a 45-degree variation to each side of the track. The "Spring Cap" design fully supports blocks under any conditions. It features a polyethylene liner held "captive" within the slide, allowing for years of trouble-free and friction-free service.

• Aluminum stand-up spring blocks on stainless steel T-track sliders
• "Delrin" sheaves

• Stainless steel springs support blocks

• Spring pins lock slides in place

• Polyethylene liners reduce friction on slides


Mfg No. 504-82

Track Size 1" x 1/8" (25 x 3mm)

Boat LOA¹ 27 Ft (8m)

Boat Displacement¹ 5,000 Lbs (2,270kg)

Sail Area¹ 315 ft² (29m²)

Sheave Dia. 2" (51mm)

Max Line 7/16" (11mm)

Dimensions (L x W x H) 3" x 1-1/4" x 4-5/32" (76 x 31 x 105mm)

SWL² 1,750 Lbs (795kg)

Weight 7 oz. (198g)

1. Boat size recommendations are for typical genoa lead applications.

2. SWL (Safe Working Load)

MSRP

$239.55

U/M

/ EA

Price

$203.62

Core

Part Number

504-82

Manufacturer

SCHAEFER MARINE INC

Brand

ETA

Quantity Available

2

Quantity On Order
