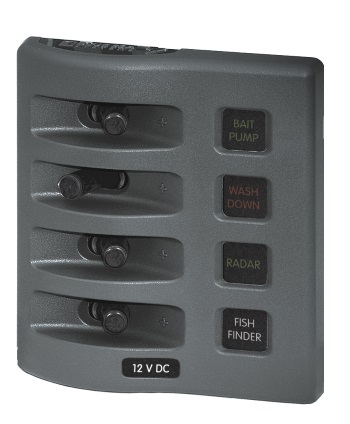

Above Deck 4-Position Panel - "WeatherDeck"

Water Resistant "WeatherDeck" Fuse Panel

These DC-switch panels are designed for flybridge and open cockpit applications on 12-volt systems. Each will withstand the water exposures normally encountered in above-deck applications, including salt spray, rain, hose washdowns and momentary immersions. They Accept ATO/ATC (Automotive Blade-Type) fuses, which are sold separately.


Features:

• Rated IP67 - Temporary immersion for 30 minutes

• Integrated switch guards prevent accidental switching

• Independent label backlighting circuit for remote switching and dimming
• Each panel can be mounted in 4 different orientations

• Integrated ATO/ATC fuse-based circuit protection

• Constructed from corrosion-resistant materials

• UV-stabilized faceplate

• Rugged UV-stabilized waterproof boots

• Compatible with all Blue Sea Systems Digital Dimmers

• Bi-colored LED illuminates circuit labels to quickly identify "Off" (Red), "On" (Green), or "Blown" (No Color) circuits

• Labels conveniently read in any mounted orientation - 30 Square Format Labels included


• Maximum voltage rating: 12 Volts DC

• Panel material: Reinforced polycarbonate

• Cover material: UV-resistant thermoplastic

• Switch type: OFF/ON Toggle with waterproof boot

• Panel width: 3.88" (98.55mm)

• Backlighting voltage: 12 volts DC nominal

• Backlighting amperage: 10mA per illuminated circuit

• Maximum amperage/circuit: 15 amps

• Maximum switch rating: 15 amps


MSRP

$131.27

U/M

/ EA

Price

$111.58

Core

Part Number

4304

Manufacturer

BLUE SEA SYSTEMS

Brand

ETA

Quantity Available

2

Quantity On Order
