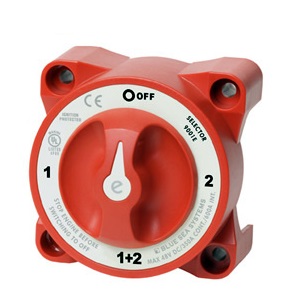

4-Position - Manual 300 Amp "e-Series"

e-Series On/Off Battery and Selector Switch

Battery switch with 350A-continuous rating for small inboard gasoline or diesel engines - 45% higher than standard switches.

4-Position model (ON/OFF with Dual Battery Selector) switches isolated battery banks to all loads or combines battery banks to all loads. Make-before-break contact design allows switching between battery banks without power interruption


Features:

• Ignition protected - safe for installation aboard gasoline-powered
  boats

• Tactile textures indicate knob position by feel only

• Case design allows surface or rear panel mounting

• Accepts up to 4/0 battery cables

• Fits all Perko and Guest low-amperage battery switch hole patterns
• 7/8" stud length to accept multiple cable terminals

• 3/8" M10 Tin-plated copper studs for maximum conductivity and corrosion resistance

• Meets American Boat and Yacht Council (ABYC) requirements for battery switches


• Cranking rating - 10 seconds/ 2000 amps DC

• Cranking rating - 1 minute/ 1000 amps DC

• Intermittent rating - 5 minute / 600 amps DC

• Continuous rating - 350 amps DC

• Terminal stud - Tin-plated copper 3/8"-16 (M10)

• Torque - 140 inch-lbs.

• Cable meet 4/0 ratings

• Cable clearance for 4/0 cables at 1.10" (27.9mm)

• Case material - Reinforced polycarbonate

• UL Listed - CE Approved

• Meets UL1107 - Electrical Power Switch

• Meets UL 1500 and SAE J171 for external ignition protection
  requirements

• Waterproof rated IP66 - protected against powerful water jets


MSRP

$66.29

U/M

/ EA

Price

$56.35

Core

Part Number

9001E

Manufacturer

BLUE SEA SYSTEMS

Brand
