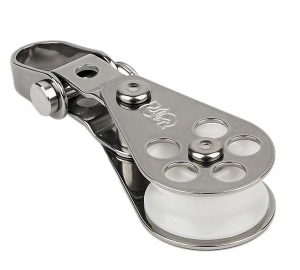

27mm - Single / Front-Side Shackle
SKU: 200145
2 Series Block - 27mm Sheave
Stainless Steel
Schaefer 2 Series Blocks are perfect for vangs, outhauls, backstays, cunninghams and other control blocks on a wide variety of boats.
Cheeks are constructed of tumbled and polished stainless steel for maximum resistance to corrosion and cracking. Sheaves are made of tough, high-impact Delrin(R) and turn on polished, stainless steel spacers that prevent the cheeks from binding the sheave, even under heavy load.
Specifications:
- Sheave Diameter - 1-1/16" (27mm)
- Sheave Width - 3/8" (9mm)
- Max Line Diameter - 5/16" (8mm)
- Pin Diameter - 3/16" (5mm)
Applications:
- For boats to 20 feet, control lines on boats to 25 feet
Mfg No. 02-03
Description Single / front-side shackle
Dimensions1 (L x W x T) 3-15/32" x 1-3/16" x 19/32" (88 x 30 x 15mm)
SWL2 900 Lbs (410kg)
Weight 1.75 oz. (50g)
1.
L - Length,
W - Width,
T - Overall Thickness
2. SWL (Safe Working Load)
-
