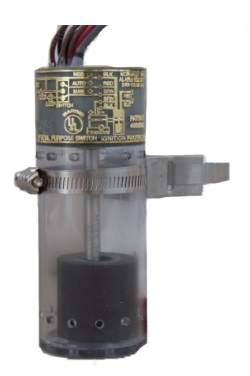

"Ultra Bilge Pumpswitch" Junior - 12V

"Ultra Bilge Pumpswitch" Junior - 12V

SKU: 76008

$170.00 / EA


"Ultra Bilge Pumpswitch" Junior - 12 Volt DC

Automatic Bilge Pump Switch Only
Pump Not Included

This automatic bilge pump switch has a patented design that provides maximum immunity to clogging, sticking, or pump burn-out.

Durability is ensured with the highest quality construction of materials impervious to anything commonly found in bilges. Switch components are completely sealed against moisture.


Features:


  • Environmentally safe - contains no mercury
  • Power-On indicator light
  • No electronics
  • Sensor tube built of non-magnetic stainless steel
  • Positive acting - with no timer delays
  • Extra long wire leads
  • Wire connectors sealed with adhesive heat shrink tubing
  • Wiring instructions permanently stamped on the switch
  • Custom bracket built of non-magnetic stainless steel
  • Can be mounted on bulkhead or submersible pumps

Specifications:

  • UL tested to 12 Volts at 15-amps
  • Dimensions - 6-1/4" high and 2-1/2" diameter
  • 1-1/4" ON/OFF differential
  • Relay output - 30-amp with 15-amp pump load
  • Ignition Protected
  • Marine UL Listed
  • Exceeds USCG Standards
  • 5-Year warranty

MSRP
$200.00
U/M
/ EA
Price
$170.00
Part Number
PS-02 12V
Quantity Available
11
