"SunSaver" Solar Controller - Max Solar 10A - 12V

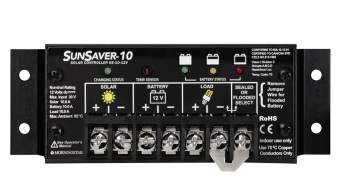

"SunSaver" Solar Charge Controller

PWM (Pulse Width Modulation) Type

Morningstar's "SunSaver" is the world's leading small solar controller for both professional and consumer applications. It utilizes advanced technology for extending battery life, with proven reliability and consistent high-quality prooduction. The "Sunsaver" controllers are also well sealed against the environment, making them ideal for oil/gas applications.

Rated for both solar current and load current. Note that low-voltage disconnect is only available on the models designated as L-models of these units.


Features:

• Approved for use in hazardous locations (Class 1, Div. 2, Groups A, B, C, D)

• Constant voltage (PWM Series) regulation design (not shunt)
• Temperature compensation

• Each model rated for 25% overload - no need to derate

• Fully encapsulated in epoxy potting

• Marine-rated terminals and anodized aluminum case for extreme environmental conditions

• Select for either sealed or flooded battery types


• Terminal size - 5.2mm squared / 10 AWG

• Ambient operating temperature from -40 to +60° C.

• Dimensions - 6.0" x 2.2" x 1.3" (152 x 55 x 34mm)

• Weight - 0.5 Lbs. (0.23 kg)

• CE certified


MSRP

U/M

/ EA

Price

$97.00

Core

Part Number

SS-10-12V

Manufacturer

Web Morningstar Corp.

Brand

ETA

Quantity Available

2

Quantity On Order
