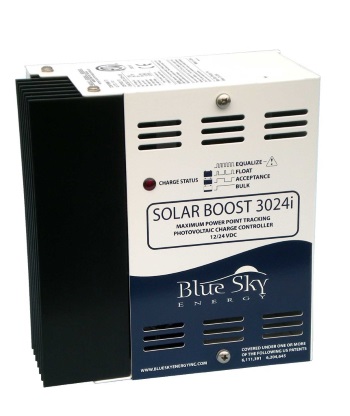

"Solar Boost" 3024iL Solar Charge Controller - 12/24V

"Solar Boost" Photovoltaic Charge Controller

For 12V or 24V System with Maximum Power Point Tracking (MPPT)

40-Amp/12 Volt or 30-Amp/24 Volt

This controller has an amp rating that supports many applications. It also utilizes patented MPPT technology to increase charge current up to 30% or more. Get the most out of your solar modules and batteries.

With an optional IPN-ProRemote display this unit provides both charge control and a complete battery system monitoring, eliminating the need for a separate battery monitor device.

The user configurable auxiliary output can serve as either a 25-amp load controller, or as a 2-amp auxiliary battery charger. The load control feature can be used to limit excessive battery discharge in unattended remote systems, where as the auxiliary battery charge feature is ideal for charging a separate battery such as the engine battery in an RV.

Blue Sky Energy's advanced "Integrated Power Net" (IPN Network) allows up to 8 IPN capable charge controllers to communicate with each other and operate as a single machine rather than separate charge controllers. The IPN network also allows networked controllers to share an optional battery temperature sensor and remote display. The IPN network does not require a display or other special hardware to operate.


Features:

• Auxiliary output serves as 20 amp load controller or 2 amp battery charger

• Load controller provides fully adjustable dusk to dawn lighting control
• Three stage charge control with filtered PWM output and auto/manual equalization improves battery performance and life

• MPPT power converter can charge lower voltage battery from higher voltage array

• Electronic current limit prevents overload or nuisance fuse blow

• IPN network interface coordinates multiple controllers and shares optional battery temperature sensor and display

• Battery temperature sensor input

• Durable powder coat finish and conformal coated electronics resist corrosion

• Fully protected against excess current, temperature, transient voltage and polarity

• Full 5-year limited warranty, optional extended coverage available
• ETL listed to UL 1741, certified to CAN/CSA E335-1/2E, CE labeled


MSRP

U/M

/ EA

Price

$365.00

Core

Part Number

SB3024iL

Manufacturer

BLUE SKY ENERGY INC.

Brand

ETA

Quantity Available

1

Quantity On Order
