"Active" Transom-Mount Depth Transduce -Up to 1000-Feet

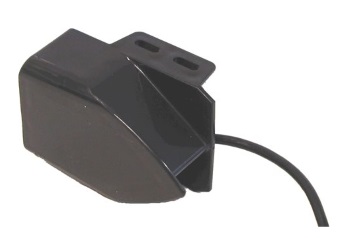

"Active" Transom-Mount Depth Transducer

The CruzPro DSP (Digital Signal Processing) "active" transducers output NMEA 0183 serial data of depth. The DSP technology used by the CruzPro active transducers provides for reliable depth tracking. This technology also provides superior high-speed operation by reducing the high-speed ringing effects of transducer buffeting and slap. This active transducer operates at 120khz to prevent interference with other nearby depth sounders and fishfinders - making it immune to the effects of other depth sounders and fishfinders.

Just connect 12V to the 30-foot (9.7 meter) cable and connect the NMEA 0183 data wire to any NMEA compatible instrument, computer or NMEA data repeater. The ASCII NMEA 0183 information can be used to log depth and repeat the display information at a remote location.


Specifications:

• Transom-mount transducers in durable plastic

• 30-feet cable supplied

• Operating voltage - 9.5 - 16.0 VDC

• Current drain - 0.035 amps nominal

• Output power - 320 watts RMS

• Data ouput - NMEA 0183 serial 4800 BAUD, $SDDPT, $SDDBT, and $SDMTW (temperature models)

• Equivalent processed power - DSP power of 6,400 watts

• Depth tracking - Up to 1,000-feet (304m)

• CE certified


MSRP

U/M

/ EA

Price

$228.83

Core

Part Number

ATT120B

Manufacturer

CRUZ PRO LTD.

Brand

ETA

Quantity Available

1

Quantity On Order
