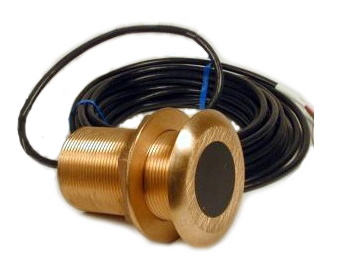

"Active" Thru-Hull Depth Transducer - Bronze - Up to 450 feet

"Active" Thru-Hull Depth Transducer

The CruzPro DSP (Digital Signal Processing) "active" transducer provides reliable depth tracking, and it outputs NMEA 0183 serial data. The DSP technology also provides superior high-speed operation by reducing the high-speed ringing effects of transducer buffeting and slap. This transduce operates at 120khz to prevent interference from, and making it immune to, the effects of nearby depth sounders and fishfinders.

Just connect 12V to the 30-foot (9.7 meter) cable and connect the NMEA 0183 data wire to any NMEA compatible instrument, computer or NMEA data repeater. The ASCII NMEA 0183 information can be used to log depth and repeat the display information at a remote location.

Measure temperature at depth from 32 to 90° F (0-32° C).

Specifications:

• Thru-hull transducers in bronze

• 30-Foot cable supplied

• Operating voltage: 9.5 - 16.0 VDC

• Current drain: 0.035 amps (nominal)

• Output power: 320 watts RMS

• Data ouput: NMEA 0183 serial 4800 BAUD, $SDDPT, $SDDBT, and $SDMTW (temperature models)

• Equivalent processed power: DSP power of 6,400 watts

• Depth tracking: up to 450 feet (137m)

• CE certified


MSRP

U/M

/ EA

Price

$314.67

Core

Part Number

ATB120AT

Manufacturer

CRUZ PRO LTD.

Brand

ETA

Quantity Available

2

Quantity On Order
